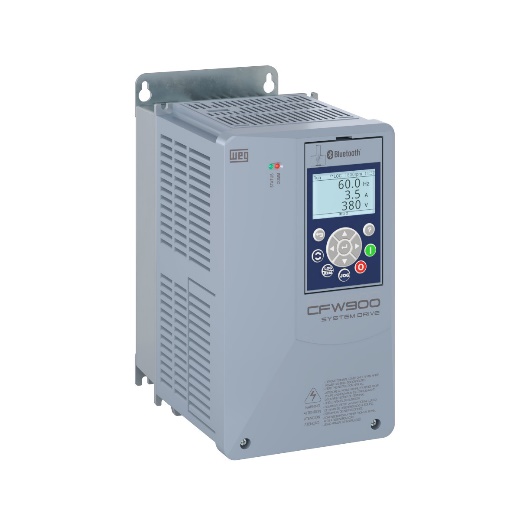

CFW900

Variable Speed Drives – CFW900

Power supply:        200 – 240 V single or three-phase        200 – 240 V three-phase       380 – 480 V three-phase Rated output current: 4.6 – 250 A Rated output power: 1.1 to 132kW (1.5 to 175HP) USB port incorporated into the HMI Intelligent thermal management Operation at ambient temperature -10 ˚C to 50 ˚C Optimal braking Real time clock Bluetooth communication Built-in SoftPLC Free WPS programming and monitoring software Inductor on DC link reduces harmonic distortion Built-in RFI suppressor filter Motor temperature monitoring

CFW900 – System Drive

The CFW900 is a high-tech VSD for driving and controlling three-phase induction and permanent magnet motors. It offers excellent static and dynamic performance and high precise torque, speed and position control. It can be used in a wide range of application due to its high overload capacity.

The CFW900 variable speed drive provides energy saving, safety, increased productivity and quality in the process network in which it is implemented.

SoftPLC – Built-in

Available in the standard version, this software function adds to the CFW900 the functionalities of a programmable logic controller (PLC), allowing the creation of your own software applications, ensuring flexibility and lower costs. This functionality streamlines operation and increases performance, in many cases, eliminating the need for an external PLC, optimizing and simplifying the system.

Bluetooth Communication

The new CFW900 HMI with Bluetooth connectivity is deal for panel builders and repair shops and allows programming, monitoring, parameter backup and much more via tablets or smartphones.

Applications

• Compressors
• Pumps
• Ventilation
• Load movement
• Oil and gas
• Pulp and paper
• Cement
• Mining
• Water treatment
• Etc
