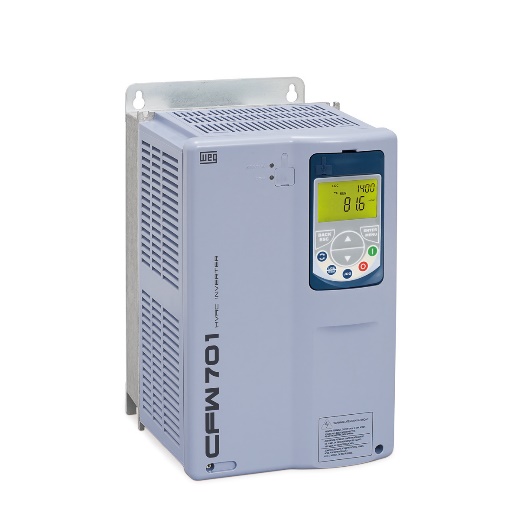

CFW701 – HVAC

Variable Speed Drives – CFW701

Power supply: 200 -600 V single or three-phases Rated output current: 2.9 – 211 A Rated output power: 1.5 to 132kW (2 to 175HP) Built-in specific operating interface Buit-in SoftPLC function Built-in inductor DC link reduces harmonic distortion RFI filter according to the EN61800-3 standard Plug and play functionally Protection and monitoring of pump and fans Free WPS programming and monitoring software Motor thermal monitoring (dedicated input for PTC)

CFW701 – HVAC

In order to be present in the world’s biggest drives market WEG developed a product dedicated to heating, ventilation, air conditioning and refrigeration application. Beyond a specific hardware designed for this purpose the CFW701 also brings in specific functions to perform according to market needs.

Built-in specific operating interface (HMI)

It is used for controlling, viewing and setting all parameters of the CFW701 HVAC. It has specific engineering units for HVAC applications and status indicators that simplify its configuration and operation. It presents two operating modes: monitoring and setting. Optional accessory for external mounting (up to 30 meters).

Applications

• Hospitals
• Shoppings
• Commercial buildings
• Universitas
• Schools
• Airports
• Hotels
• Clean rooms
• Pump and fan application in general
• Etc
