Variable Speed Drives – CFW300

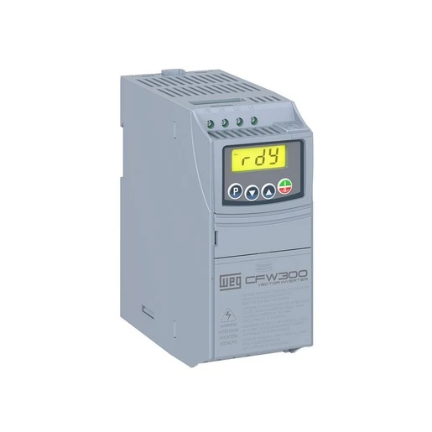

A grey electronic device with a display Description automatically generated


  • Single phase: 100 -1 27V / 200 – 240V
  • Three phases: 380 – 480V
  • Rated output current: 1.6 to 15.2 A
  • Rated output power: 0.18 – 7.5kW / 0.25 – 10HP
  • 4 configurable (PNP or NPN) digital inputs, 1 relay output 0.5 A / 250 V ac, 1 analog input 0-10 V dc / 4-20 mA
  • Selectable V/F, quadratic V/F or VVW vector control modes
  • 2 slots for function expansion, such as communication or number of I/O
  • Conformal coating: standard class 3C2 electronic board varnishing, 3C3 optional
  • Built-in SoftPLC function
  • Free WPS programming and monitoring software
  • IP20 protection rating
  • EMC footprint filter (accessory)
  • Protections, alarm and diagnostics functions
  • Operating interface (HMI) with built-in LED display

CFW300 – Mini Drive

The CFW300 variable speed drive is a high-performance VSD for three-phase induction motors, ideal for applications on machines or equipment that require precise control and easy operation. It features compact size, contactor-style electric installation, selectable WEG vector control (VVW) or scalar control (V/F), built-in operating interface (HMI), SoftPLC, free WPS programming software and lug-in accessories that may be added to provide extended functionalities, making it a flexible solution of excellent cost effectiveness.

SoftPLC

It is a software resource added to the CFW300 which allows the user to implement and debug logic projects equivalent to a small PLC (Programmable Logic Controller), customizing and integrating the CFW300 to the application. The free WLP programming software is available here.

Much more advantages

The CFW300 replace direct on-line starters or star-delta starters:

  • Electric energy saving
  • Precise speed control
  • Protection and improved lifetime for the electric motor
  • Diagnosis and fault log
  • Easy to use and install
  • Flexible, allowing the installation of accessories for the application (Plug & Play)

Applications

  • Machines and equipment
  • Opening / closing of gates
  • Single-Phase power supply
  • Fan / exhausters
  • Centrifugal pumps
  • Granulators / conveyors
  • Belts / palletizers
  • Mixer / stirrers
  • Process dosing pumps
  • Stores or homes
  • Etc
