CFW700

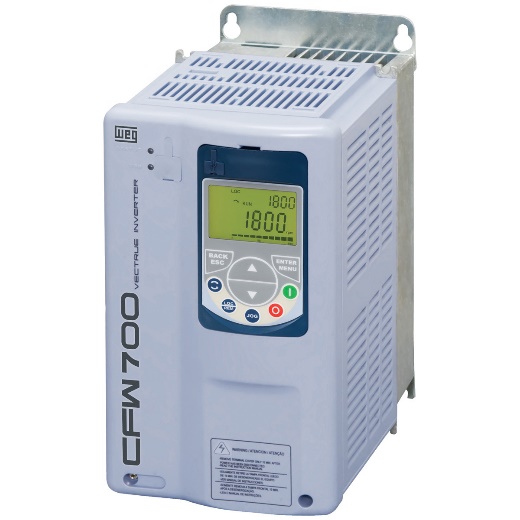

Variable Speed Drives – CFW700

Power supply: 200 – 600V Rated output current: 2.9 – 211 A Rated output power: 1.5 to 132kW (2.0 to 175HP) VVW – Voltage Vector WEG, and vector with or without encoder (sensorless) Plug & Play philosophy Built-in SoftPLC function Buitl-n USB port Smart thermal management of the fan Incorporated DC link inductor Incorporated input for incremental encoder and RS485 communication port (Modbus) Free WPS programming and monitoring software LCD operating interface (HMI) with backlight and USB port RFI filter according to the levels of EN 61800-3 standard (Optional, available by means of accessories) Flash memory module (Optional, available by means of accessories), enabling the data and transfer (parameter and applications) between inverters without turning them on

CFW700 – General Purpose Drive

Designed for controlling squirrel cage three-phase induction motors, the new CFW700 is a general purpose drive that gives customers the flexibility needed for the control of applications ranging from simple speed control to more demanding ones as torque control.

Since it is included on its control the CFW700 features Sensor less and Closed loop control as standard feature (factory built). Another outstanding characteristic we could not leave behind is that by using the internal micro PLC (SoftPLC factory built), more sophisticated applications like overhead cranes, PCP (Progressive Cavity Pump), pump jack and many more can be implemented.

Simplicity

The new CFW700 was designed based on the plug and play technology concept where by plugging in expansion modules hardware and software recognize it automatically. Also, this feature allows for easy installation and safe operation with no need for additional configuration.

Applications

• Pumps and fans
• Compressors
• Pulp and paper
• Chemical and petrochemical
• Ironwork and metallurgy
• Woods
• Etc
