AFW900 (Low Voltage)

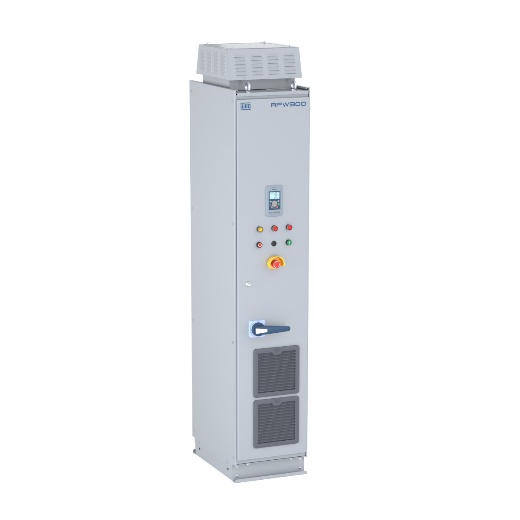

Panel – Mounted Frequency Inverter- AFW900

Power supply: 220 – 480 V Output currents: 2.8 to 250 A Output power: 1.1 – 132kW / 1.5 – 175HP Optimized design Built-in CFW900 Frequency Inverter Built-in RFI suppressor filter Built-in ST0 and SS1 safety stop functions Built-in DC link inductor reduces harmonic distortion Real time clock (RTC) Built-in control and power input protection Allows the installation of CFW900 accessories Allows the installation of output filters Flexible solution, option for customized projects Robust structure with rigorous treatment and painting process Guarantee of performance and reliability with IEC 61439-1/2 tests

AFW900 – Low Voltage

The AFW900 is a Cabinet Built Variable Speed Drive solution in accordance with IEC 61439-1/2 requirements, providing reliability, safety and guarantee to the assembled set.

Three different cabinet size are available with IP24 or IP55 protection degrees option, anticorrosion painting and internal parts with anticorrosion treatment, providing greater durability of the assembled set and complying with the requirements of different environments and power range requirements.

Customized Solutions

In addition to the standard AFW900 featured, WEG offers an ideal solution for your application, including other options and customizations on the AFW900 platforms. We have a project engineering team to develop the best solution according to the characteristics of different industrial applications.

Assembly Verification

To ensure safety, performance and reliability, electrical panels must be subjected to type testing, verification procedures and routine testing according to the guidelines of IEC 61439-1/2. Type tests, which are carried out by the original manufacturer and are mostly destructive, check the structure and performance of the panel. Routine tests, which are conducted after the assembly, check that the panel meets the requirements established in the design.
